| Volume 141 Catalog Page: 107 |
|---|

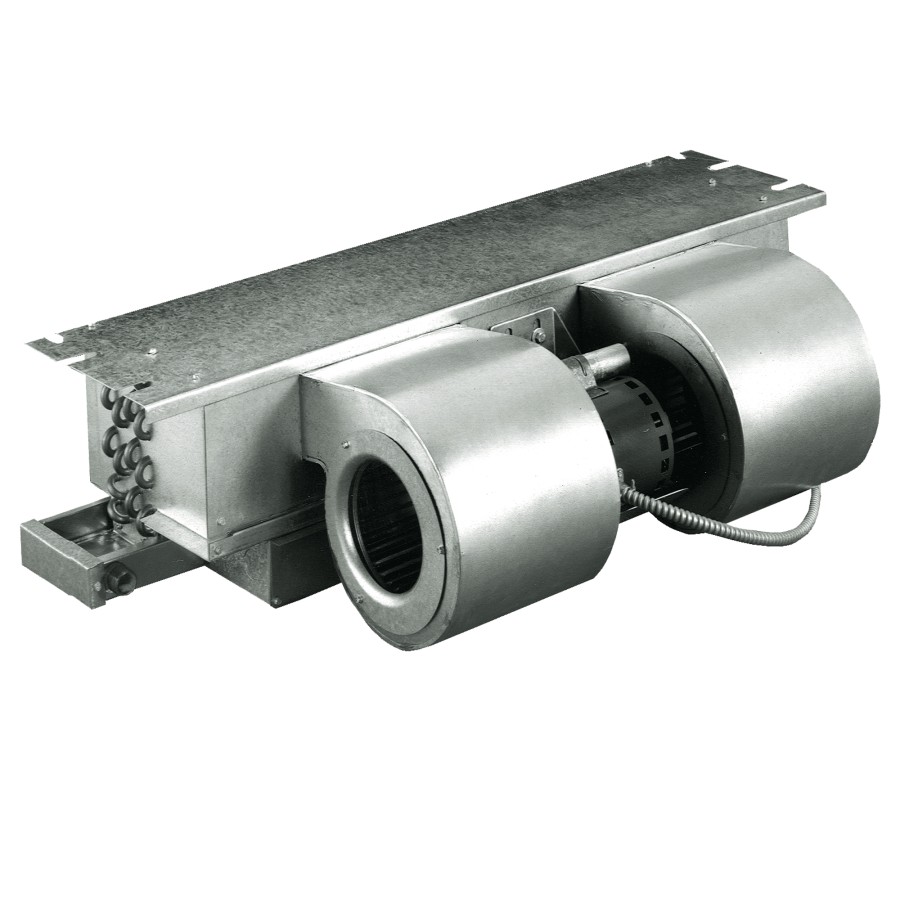

| Horizontal Fan Coil (Uncased) |
| 2.5 Ton with Factory Installed 10 kW Electric Heat |
| Sloped & insulated drain pan w/primary and secondary drains |
| 240V Motor and 24V Controls |
| Copper Tube/Aluminum Fin Heating and Cooling Coils |
| Heat pump w/heat requires kit # 942-1 |
| 43-1/4" W x 21" D x 10-3/8" H |
| 30HX10 |
| Amps: | 43.6A |
|---|---|
| Btu Cool: | 30000 |
| Btu Heat: | 34100 |
| CFM: | 1110 |
| Depth: | 21-in |
| Electric Heat: | 10 kW |
| Height: | 10-3/8-in |
| Piston Size: | 6.3E-2 |
| Refrigerant Code: | R-22/R-410A |
| Tons: | 2.5 Ton |
| Width: | 43-1/4-in |
